An all in one ergonomic companion
The all new Form Split Touchpad Keyboard features a fixed split design with an integrated Windows Precision Touchpad making it the ultimate all in one ergonomic keyboard for the home, office, or the road.
Product code
KB100-W

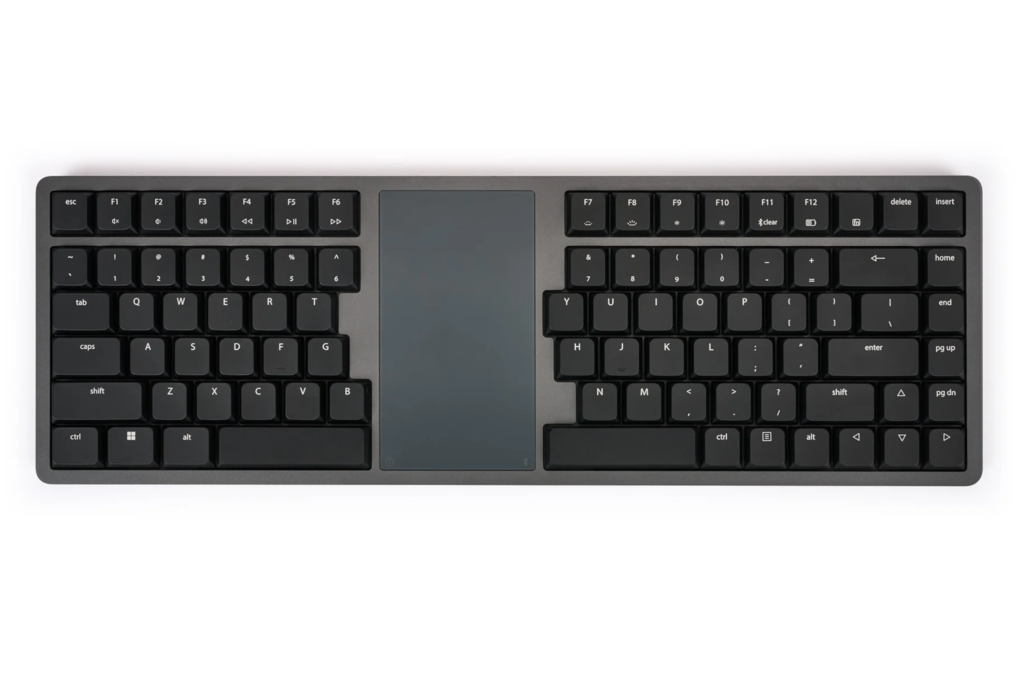

The Split is the difference
The fixed split design is expertly engineered to position the arms at shoulder width, promoting a natural alignment of the wrists that remains straight and perpendicular to the home row. This helps to minimise strain and reduce the need for excessive reaching.
Positioned in the space between the keys is a integrated Windows Precision Touchpad. The touchpad being centrally located means either hand can be used for cursor control, eliminating the need to reach to the side for a mouse.
Type, Point, Click and Scroll
The integrated Windows Precision Touchpad makes it quick and easy to point, click, and scroll on just about any operating system that recognises mouse input, all without leaving the keyboard or connecting a separate pointing device.
*Note: The keyboard features tap-to-click. There is no physical click or haptic feedback.
Ambidextrous
The centrally positioned Touchpad allows both hands to access cursor control equally, facilitating balanced usage throughout the day.
Dual connections

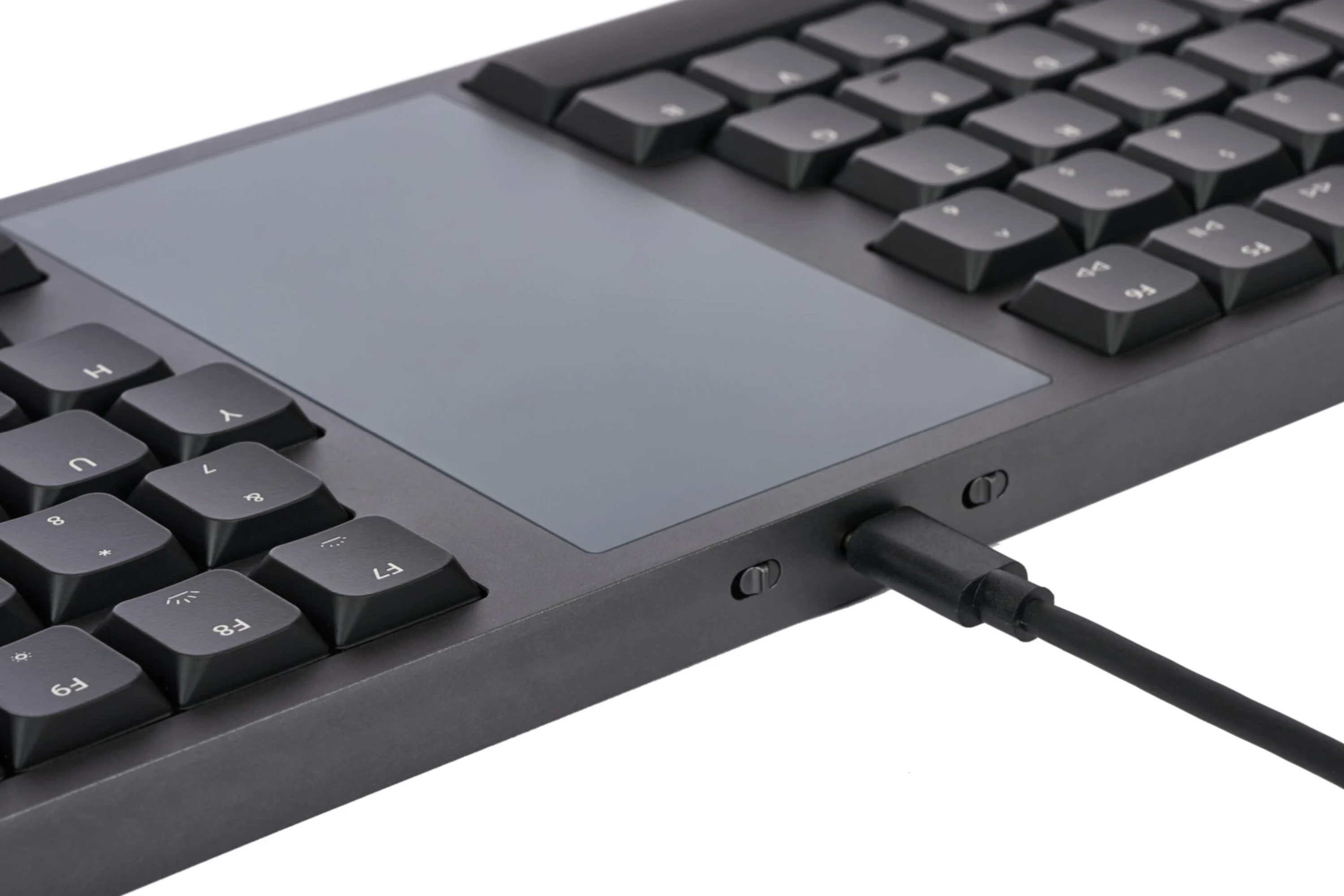

The Form can function as a wired keyboard using the included cable, which also serves to charge the device. Additionally, it is equipped with a rechargeable battery and supports Bluetooth connectivity.
The Form can maintain simultaneous Bluetooth connections with two devices, allowing for seamless switching between them.
Strong and Durable
The case is crafted from 100% precision-machined aluminium with a dark grey finish.
The keycaps are concave in shape, paired with low-profile mechanical switches that offer a mid-range activation force, ensuring a comfortable and precise typing experience.
Key Features
Fixed Split Design
Positions arms at shoulder width for natural wrist alignment, minimising strain and excessive reaching.
Integrated Windows Precision Touchpad
Centrally located for easy cursor control with either hand, eliminating the need to reach to the side for a mouse.
User-Friendly Functionality
Allows quick pointing, clicking, and scrolling on any operating system that recognises mouse input without needing a separate device.
Balanced Usage
Centrally positioned touchpad facilitates equal access for both hands, promoting balanced usage throughout the day.
Wired and Wireless Options
Functions as a wired keyboard with an included cable for charging; also features a rechargeable battery and Bluetooth connectivity.
Multi-Device Connectivity
Maintains simultaneous Bluetooth connections with two devices for seamless switching.
Durable Construction
Made from 100% precision-machined aluminium with a dark grey finish.
Comfortable Typing Experience
Concave keycaps paired with low-profile mechanical switches provide a mid-range activation force for comfort and precision.

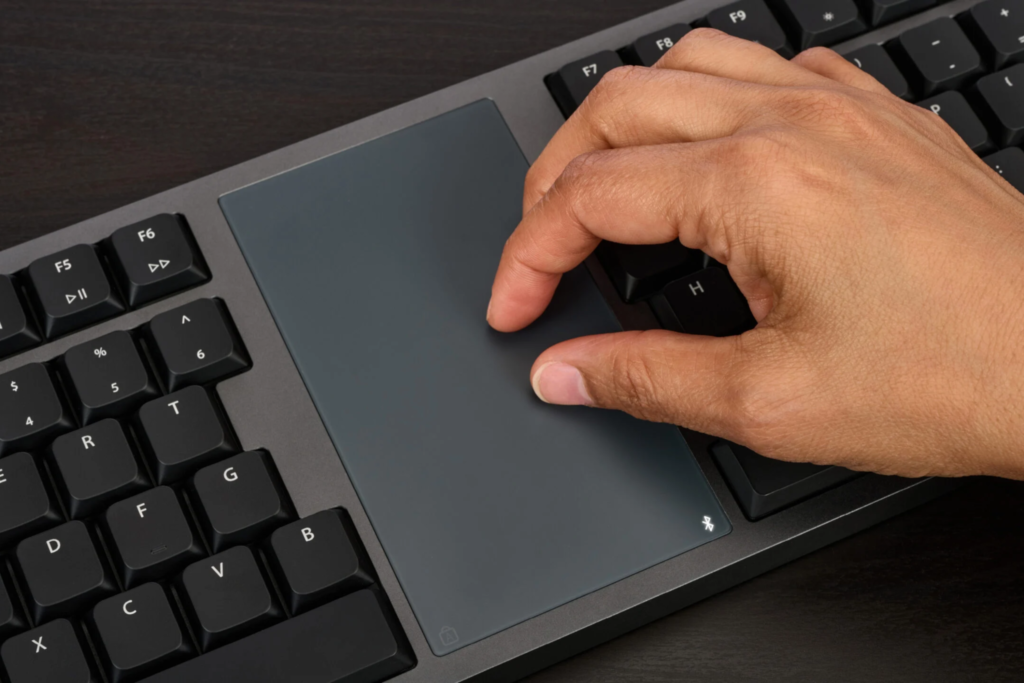

Touchpad Functions
Point, Click and Scroll
The integrated Windows Precision Touchpad makes it quick and easy to point, click, and scroll on just about any operating system that recognises mouse input, all without leaving the keyboard or connecting a separate pointing device.
1 Finger swipe: Move the cursor
1 Finger tap: Left Click
1 Finger double-tap: Left Double-Click
1 Finger double-tap and hold: Select-and-Grab
2 finger tap: Right Click
2 finger vertical swipe: Scroll up or down
Cursor and scroll speed can be configured through your devices “Mouse” or “Touchpad” Settings depending on the OS.
*Note: The keyboard features tap-to-click. There is no physical click or haptic feedback.
Gestures
Windows 10 and 11 machines will recognise the Form keyboard as a “Precision Touchpad” and can accept various multi-finger gestures likes 3 and 4 finger swipes and taps.
Those gestures can be customised here: Windows Settings > Devices > Touchpad.
Dimensions
Keyboard
Width |
406mm |
|---|---|
Depth |
133mm |
Height |
190mm |
Touchpad
Width |
63.5mm |
|---|---|
Depth |
114mm |
Compatibility
Plug-and-Play compatible with all USB operating systems
Windows (Gestures on Win10+)
macOS, iOS, iPadOS (No Gestures)
Linux (Not all Linux systems support Bluetooth Touchpad functionality)
Android
Chrome
Smart TV Compatibility
-
Android TV OS, Amazon Fire OS, Tizen OS. Firmware update may be required.
-
Check your manufacturer for support for Bluetooth keyboards and mice
*Only Windows 10-11 supports Multi-Finger Gestures
Multichannel Bluetooth & Rechargeable Batteries
Wireless Bluetooth Low-Energy (BLE)
Range: ~30 feet
Battery: 2100 mAh rechargeable Lithium Ion
Battery life: Backlighting On: 1-2 weeks / Backlighting Off: 2-3 months
Multichannel: Switch instantly between 2 Bluetooth-enabled devices
NOTE: Do not charge via unsupported devices: The keyboard should only be connected directly to your PC through a native USB port for charging. If you do not have a native USB port, a powered USB hub connected to your PC is best.
Do not connect the keyboard to a power adapter, a wall outlet, or a USB port on a power strip.
Charging via these devices can result in excess voltage or current and could lead to battery failure. Damage to the battery from improper charging is NOT covered by Warranty.
